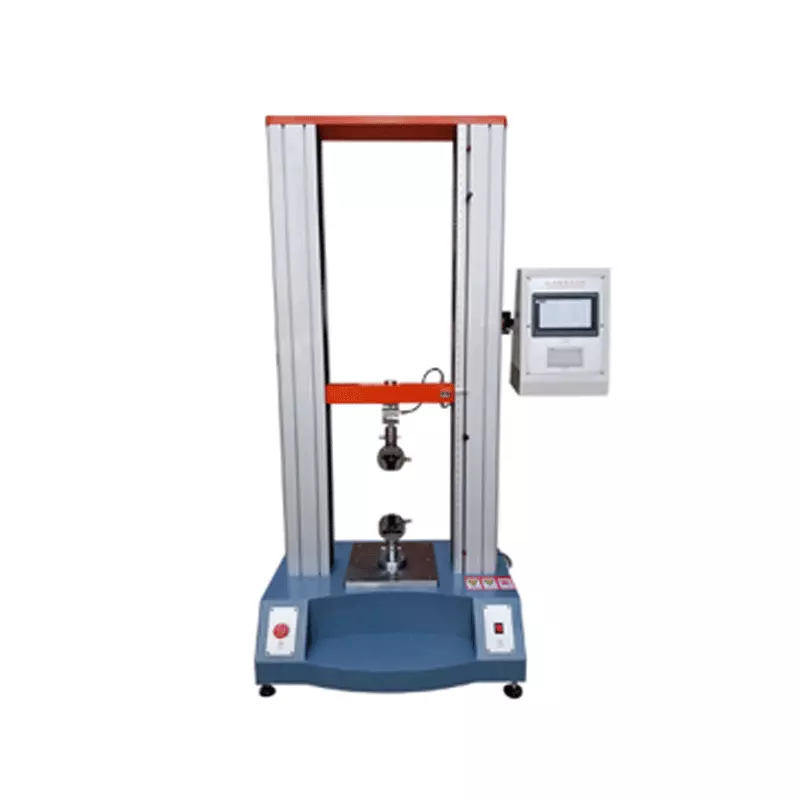

Double-Column Touchscreen Tensile Testing Machine
Maximum test force: 5,000 kg
Test force measurement range: 0.4%–100% FS
Force accuracy: Within ±1%
Test stroke: 800 mm (including fixtures)
Displacement indication error: Within ±1% of the indicated value
Displacement resolution: 0.1 mm
Control system: PLC + touchscreen control
Drive system: Variable-frequency motor with ball screw
Motor power: 1.5 kW
