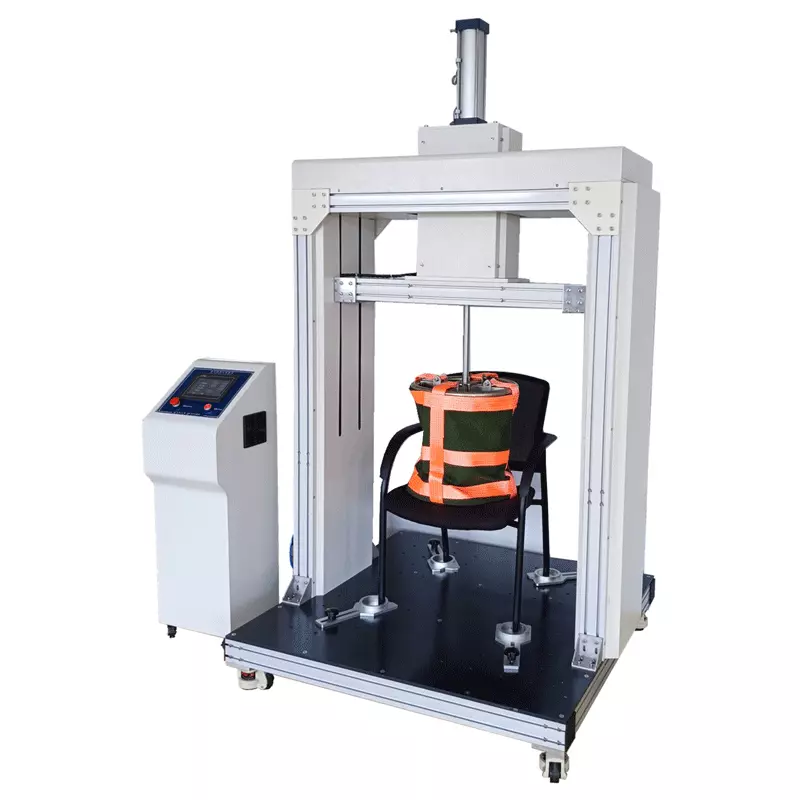

Chair Fatigue Impact Tester
Standard Load: Sandbag weights with a total weight of 136 kg (available in separate bags of 102 kg and 57 kg).
Impact Stroke: Adjustable from 0 to 400 mm.
Impact Speed: 10–30 times per minute
Impact Pad Diameter: 406 ± 6 mm
Impact seat height: 400–600 (mm) or as agreed
Normal operating power: Compressed air 0.7 MPa, power supply AC 220 V/50 Hz
Machine dimensions: 1.0 m × 1.0 m × 2.6 m (W × D × H)
Configuration: One set of chair leg clamps, one set of standard weights and sandbags
